Use the Code Generator below to select your product specification. Once completed select ‘add to schedule’ to create a schedule of luminaires, your schedule can be found at the top right hand side of the page.

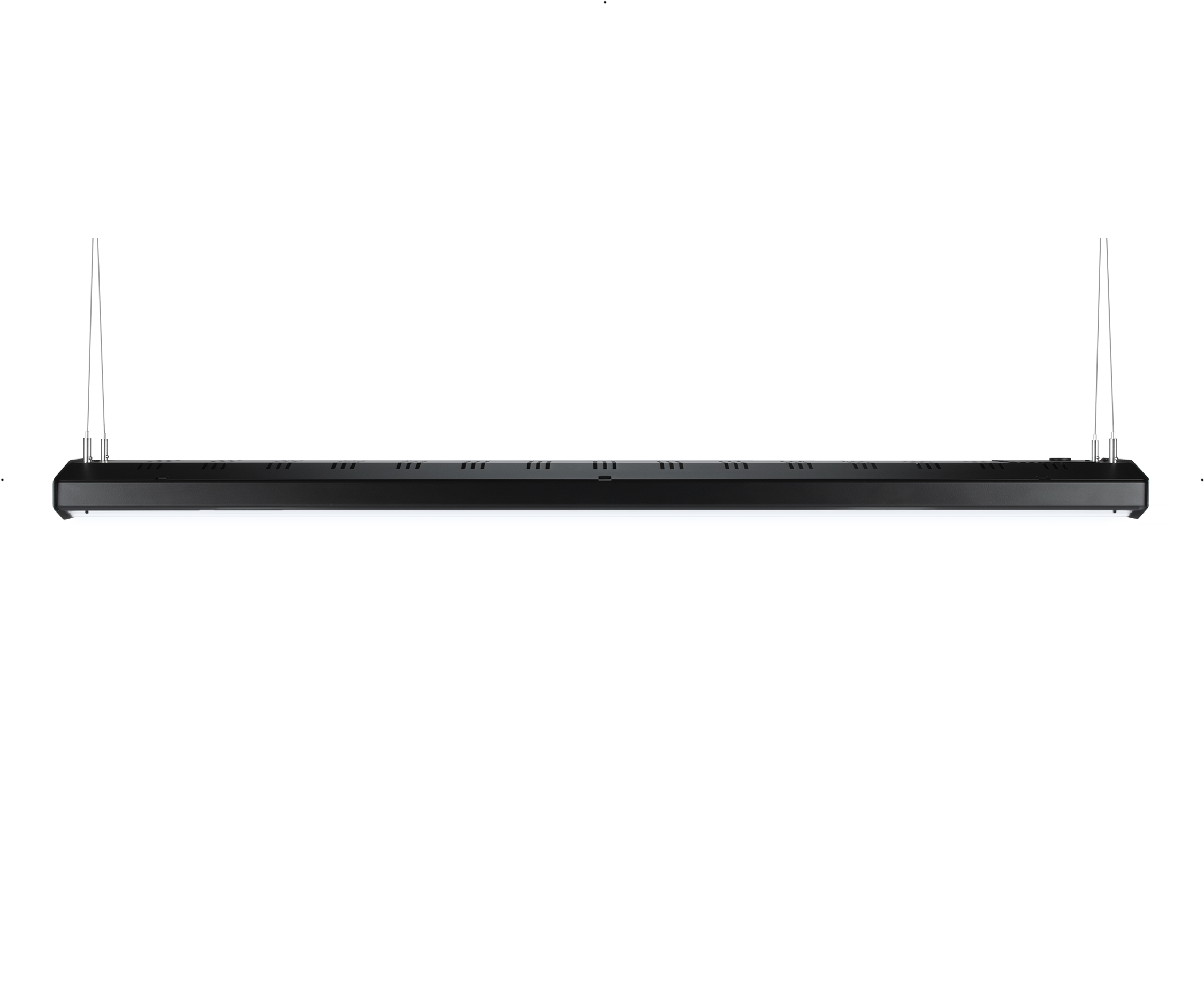

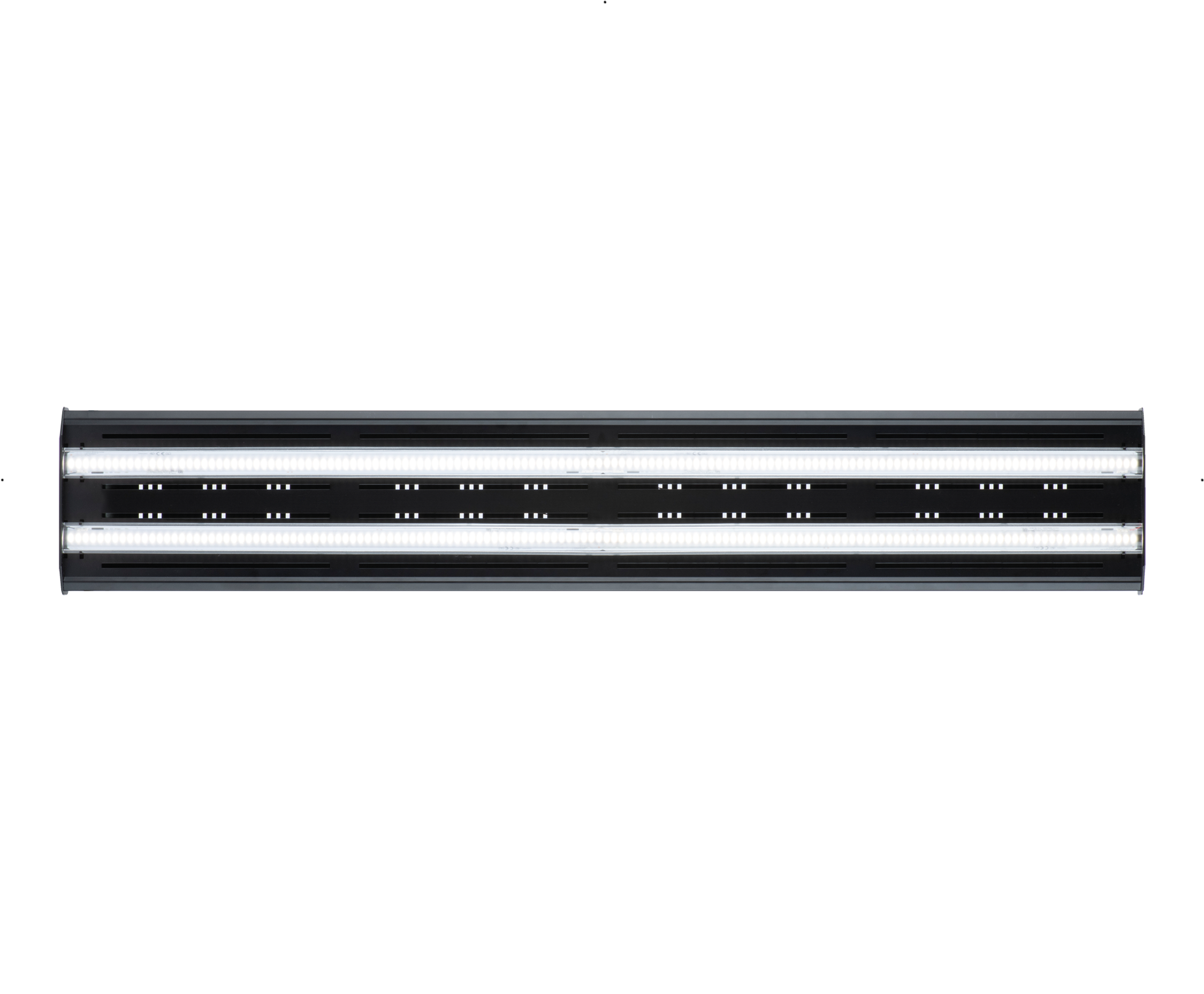

Vertigo® Duet Linear

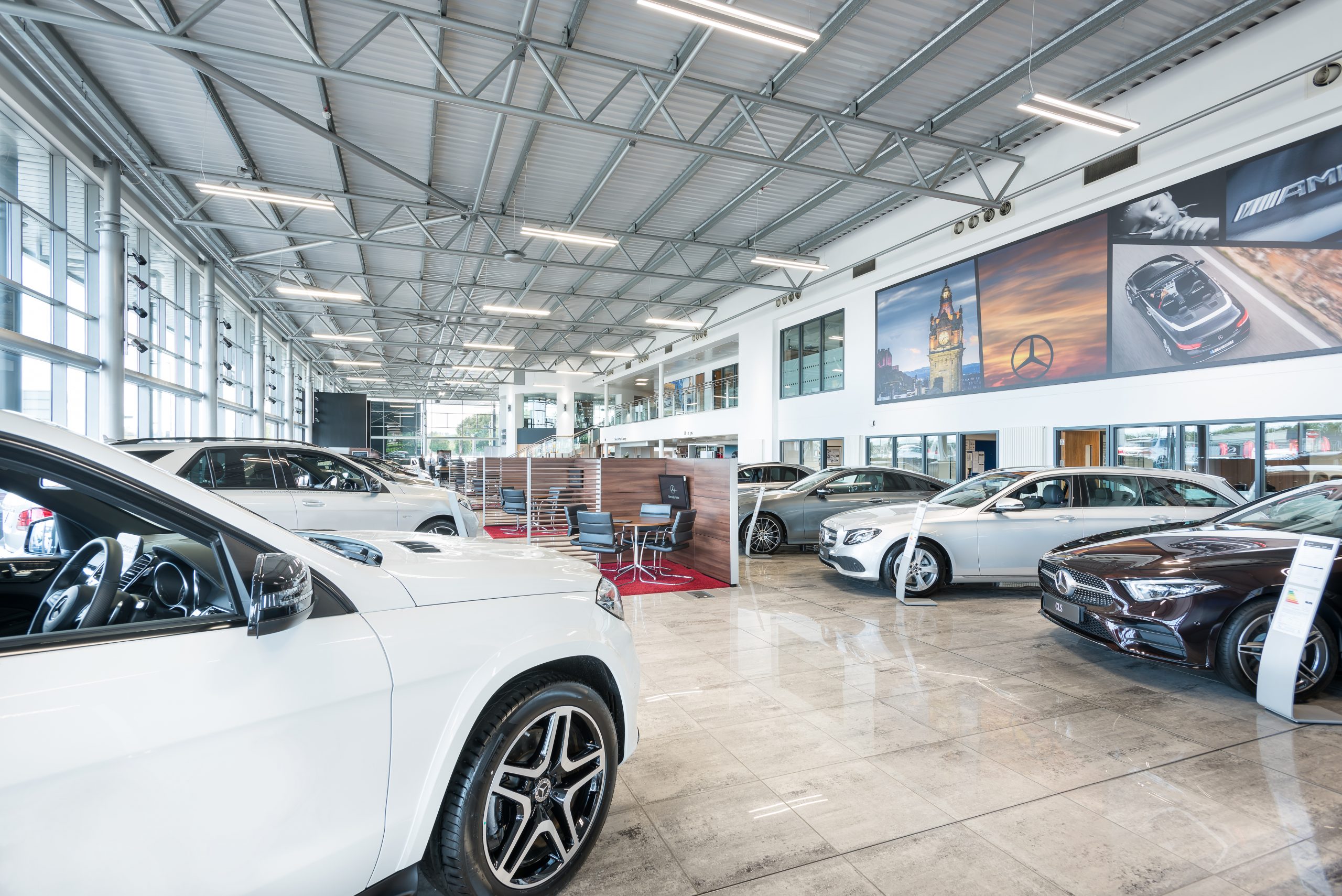

A new design featuring more compact dimensions with the same class leading technology, the Vertigo Duet Linear Highbay is perfect for a host of applications including warehouses, retail outlets, showrooms, exhibition venues, general applications and sports halls (IK08 Compliant). Utilising refractor lens control to provide an accurate distribution of light, the Vertigo Duet Linear Highbay offers optimal light quality, long service lifetime, excellent UGR performance, reduced energy consumption and maintenance.
- Lumen outputs from 22,723 to 23,894 lumens
- Efficacies up to 126 lm/W
- Colour stability within 3 MacAdams
- Life expectancy in excess of 70,000 hours (L80 B10)
- Wide beam refractor (82°) as standard, optional extra wide beam refractor (112°)
- The PIR Detector defaults can be modified, Please contact technical for further information
- IK08 compliant
- Versatile installation solutions include Suspended, Surface, Trunking and Gripple.
- Suspension versions supplied with 2 x 2m suspensions and chrome clutches as standard.
- CRI 90 Version available
- Available in White, Urban Graphite and Black
- Choice of gear types including Smart Lighting Control
